01
No heavy infrastructure
200 kg total weight. No crane, no foundation, no 3-phase power.

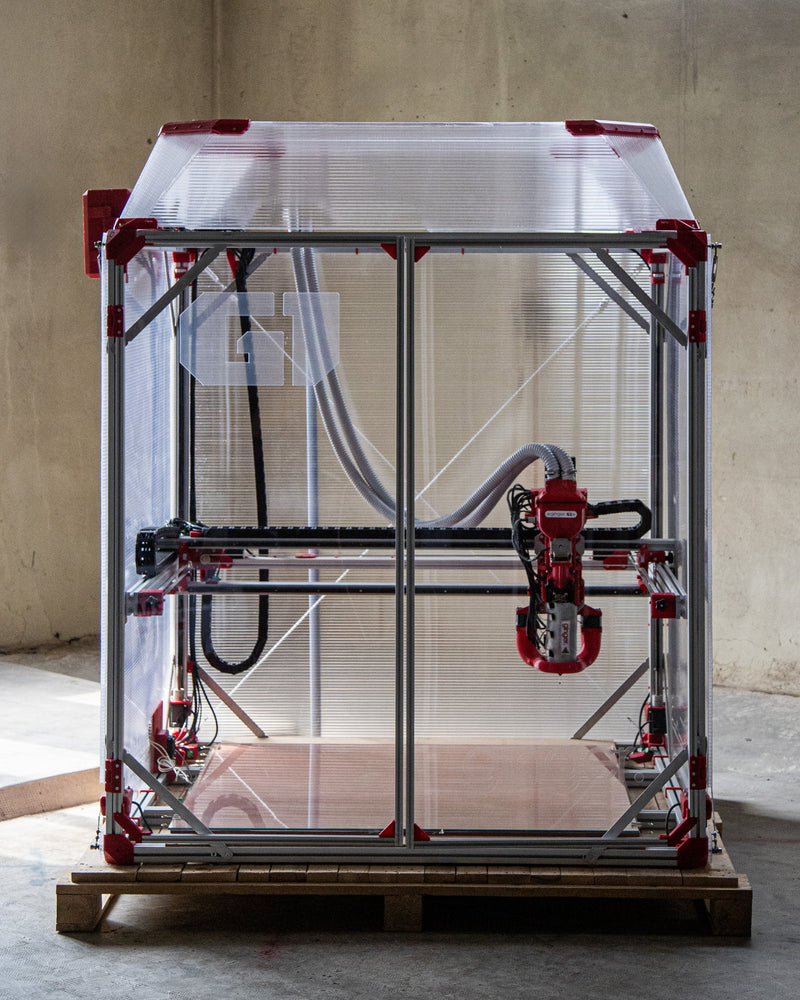

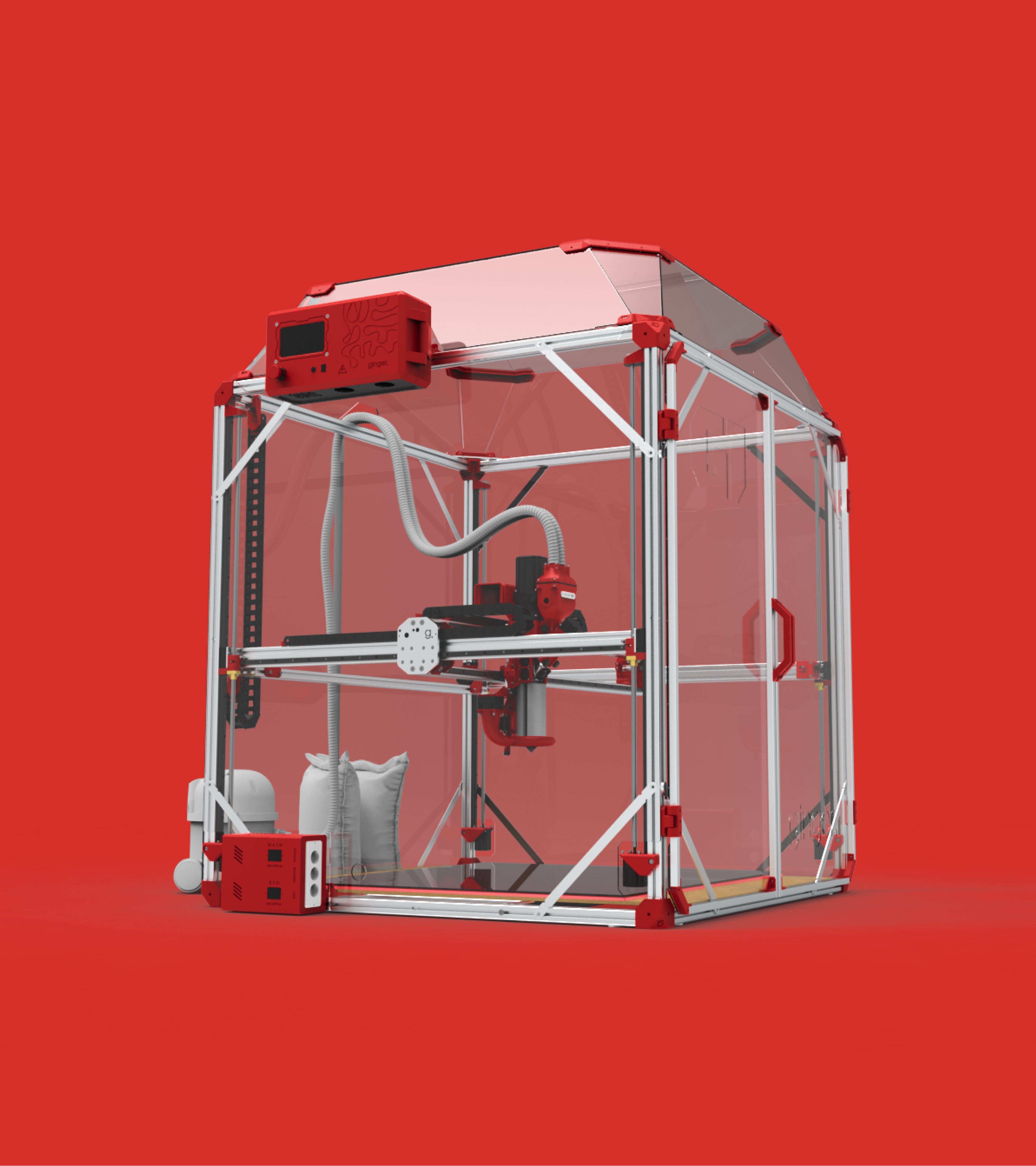

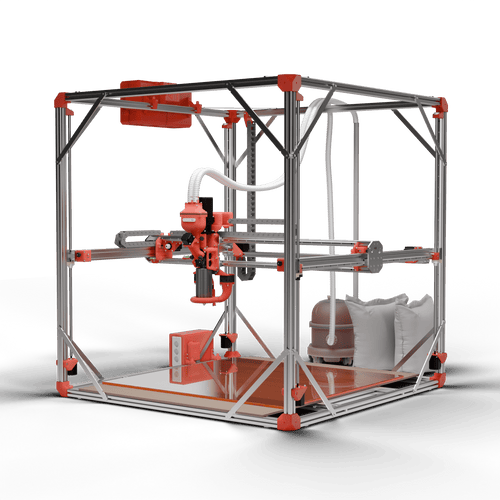

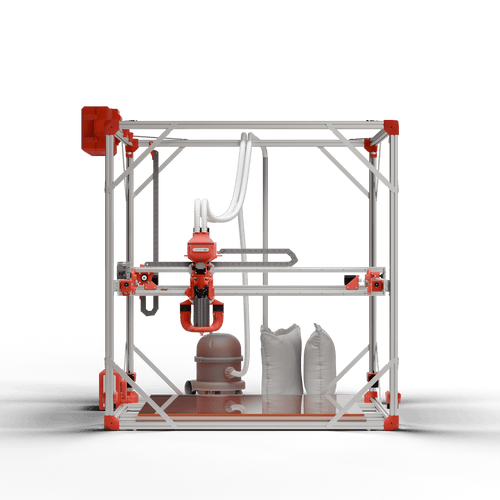

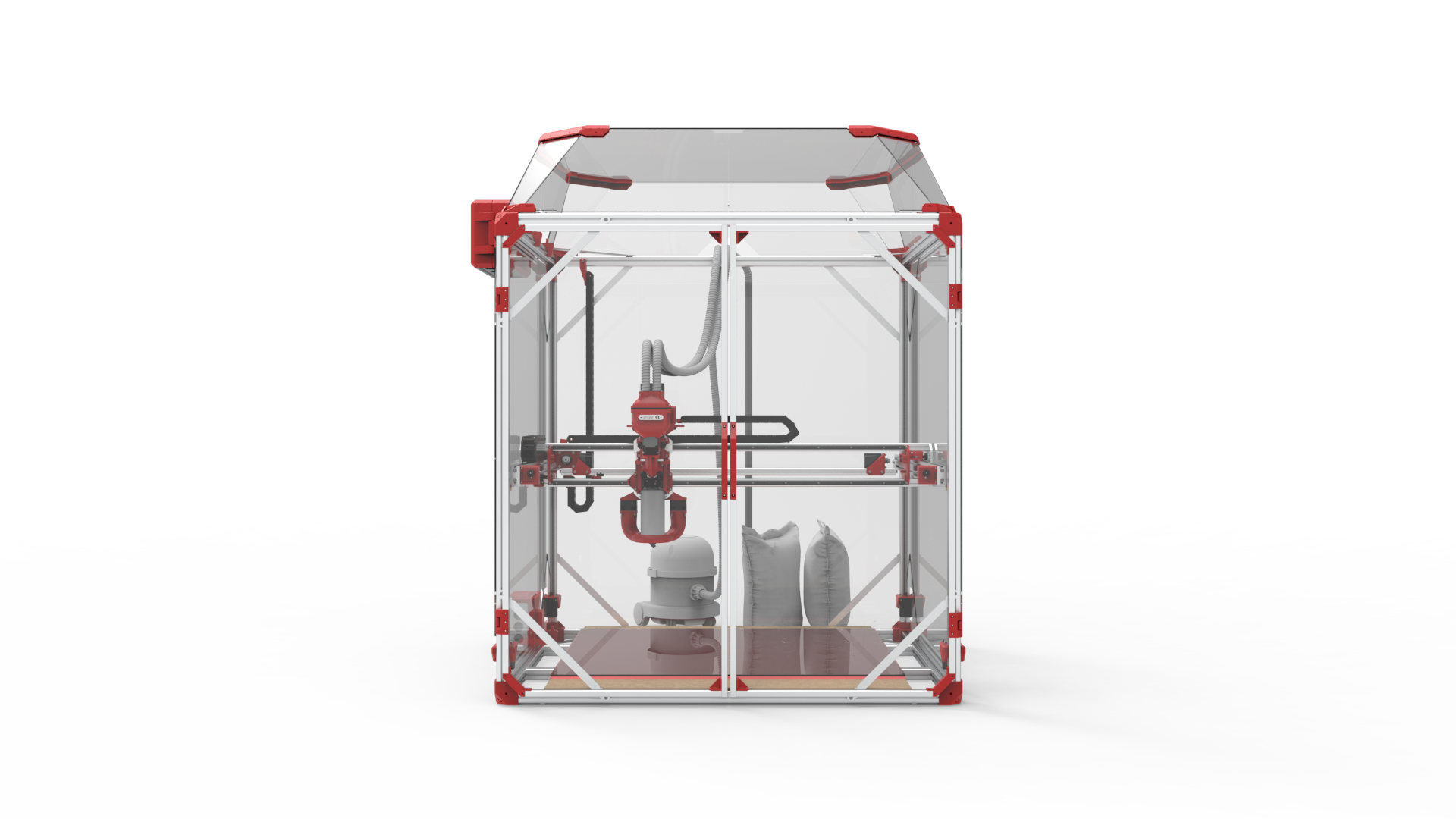

The large-format pellet 3D printer
Large-format pellet printing for under €20,000
A complete 1 m³ pellet printing system, designed and built in Milan, Italy, around our high-output extruder and an open, serviceable architecture.
1 m³
Build volume
2–3 kg/h
Extrusion rate
110 °C
Heated bed
€19,990
Complete system, excl. VAT
Why G1
Large parts, without heavy infrastructure or proprietary lock-in. Designed for reliability, predictable operation and low operating cost.
Built to be practical
Features
02
Standard components
Klipper-based control, off-the-shelf mechanics and printable spare parts.
03

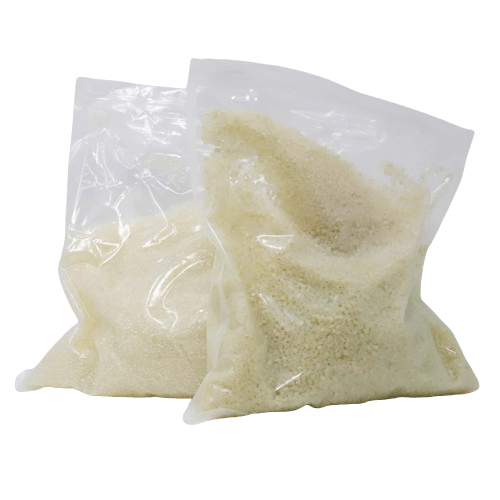

Pellet economy
Pellets start from 4 €/kg, so large parts cost less to print and pay the machine back faster.
Pellet vs filament
Every kilo pays it back.
Pellets cost a fraction of filament, so every part you print brings the G1 closer to paying for itself. Move the slider to the weight of your part and see what you save in material and time.
Printing time · G1 at 3 kg/h–
Printing time · filament printer at 0.1 kg/h–
Pellets at 4–8 €/kg–
Filament at 15–20 €/kg–
You save on material–
You save in printing time–

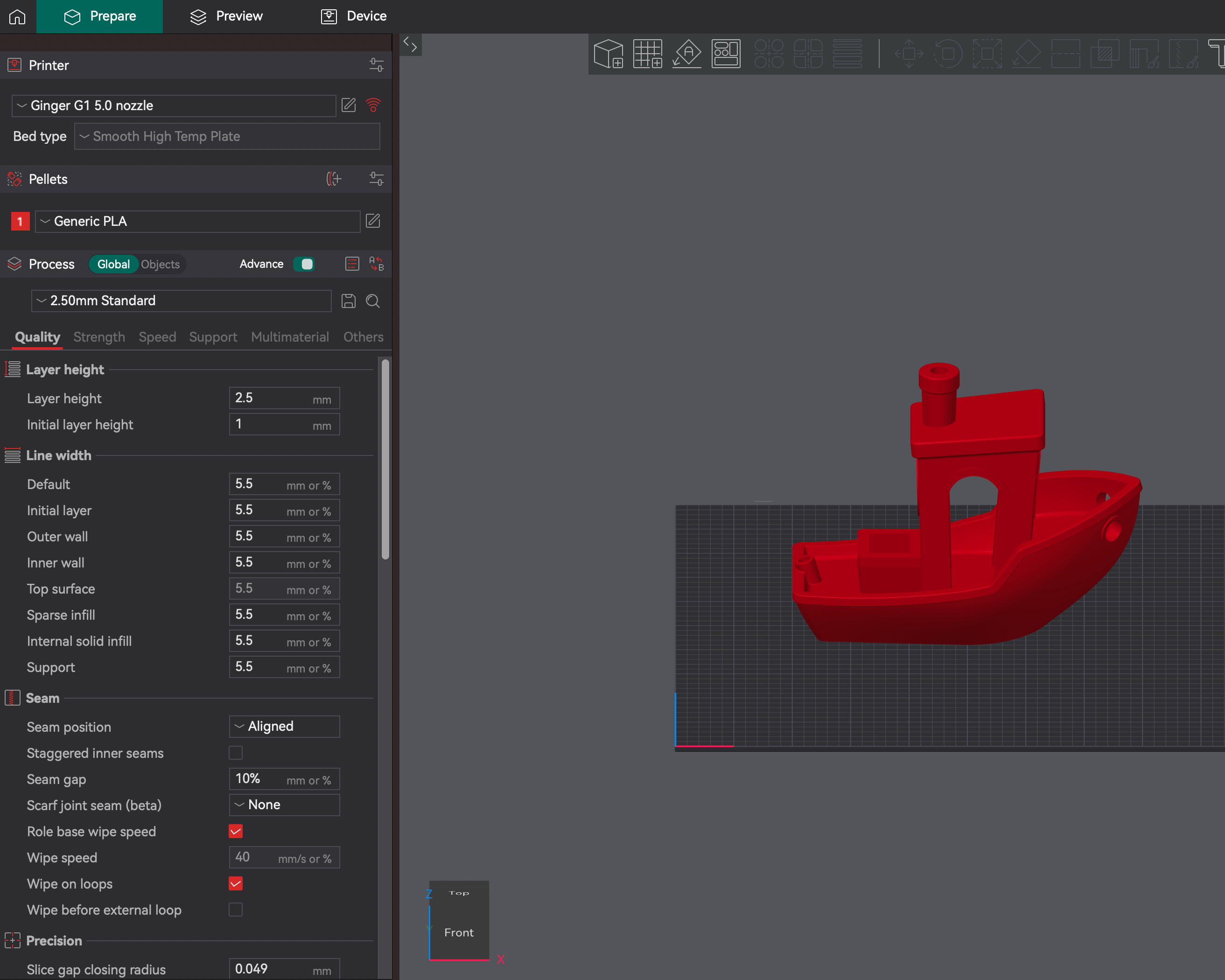

Pure extrusion time at maximum output. Real print time depends on material, nozzle and geometry: check it on GingerSlicer or send us your file for an exact estimate.
The core

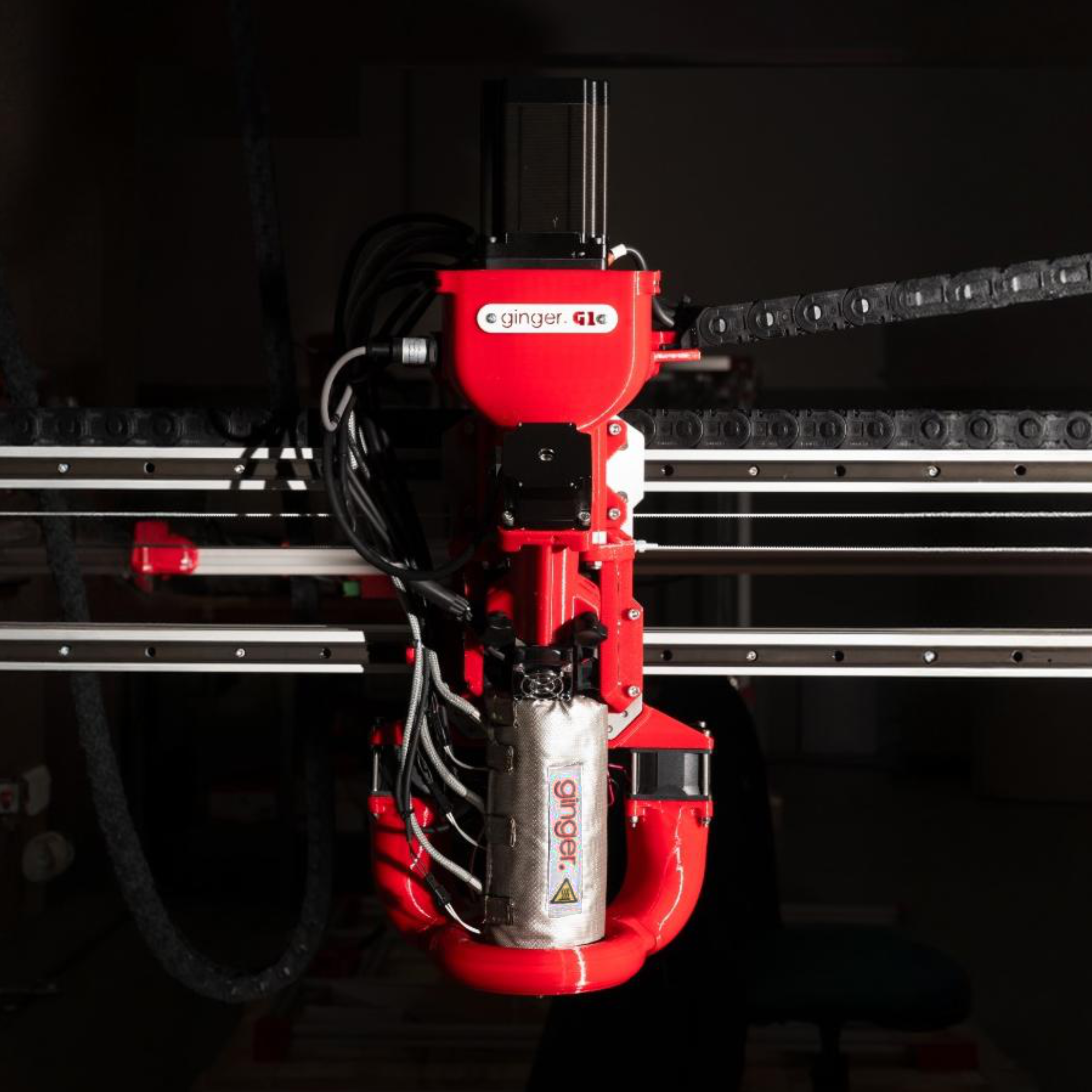

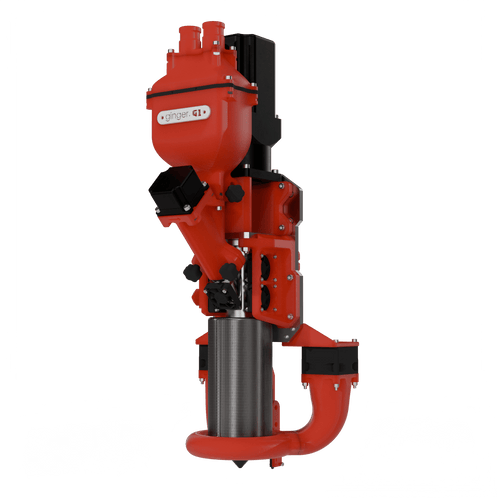

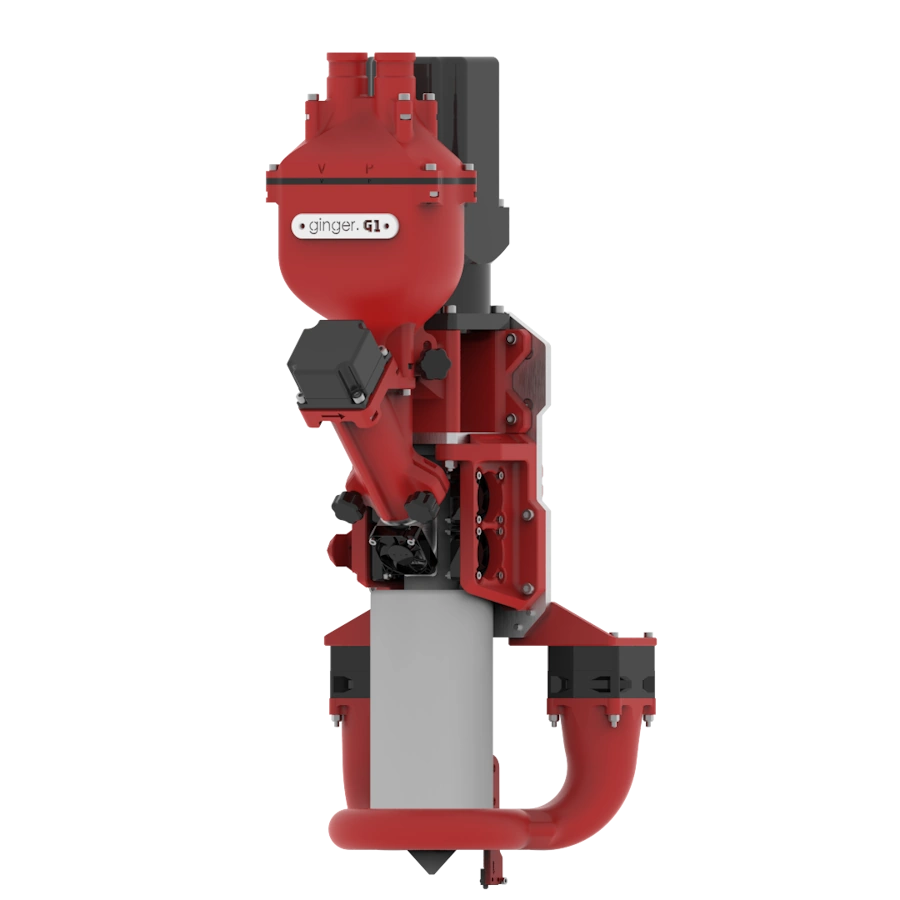

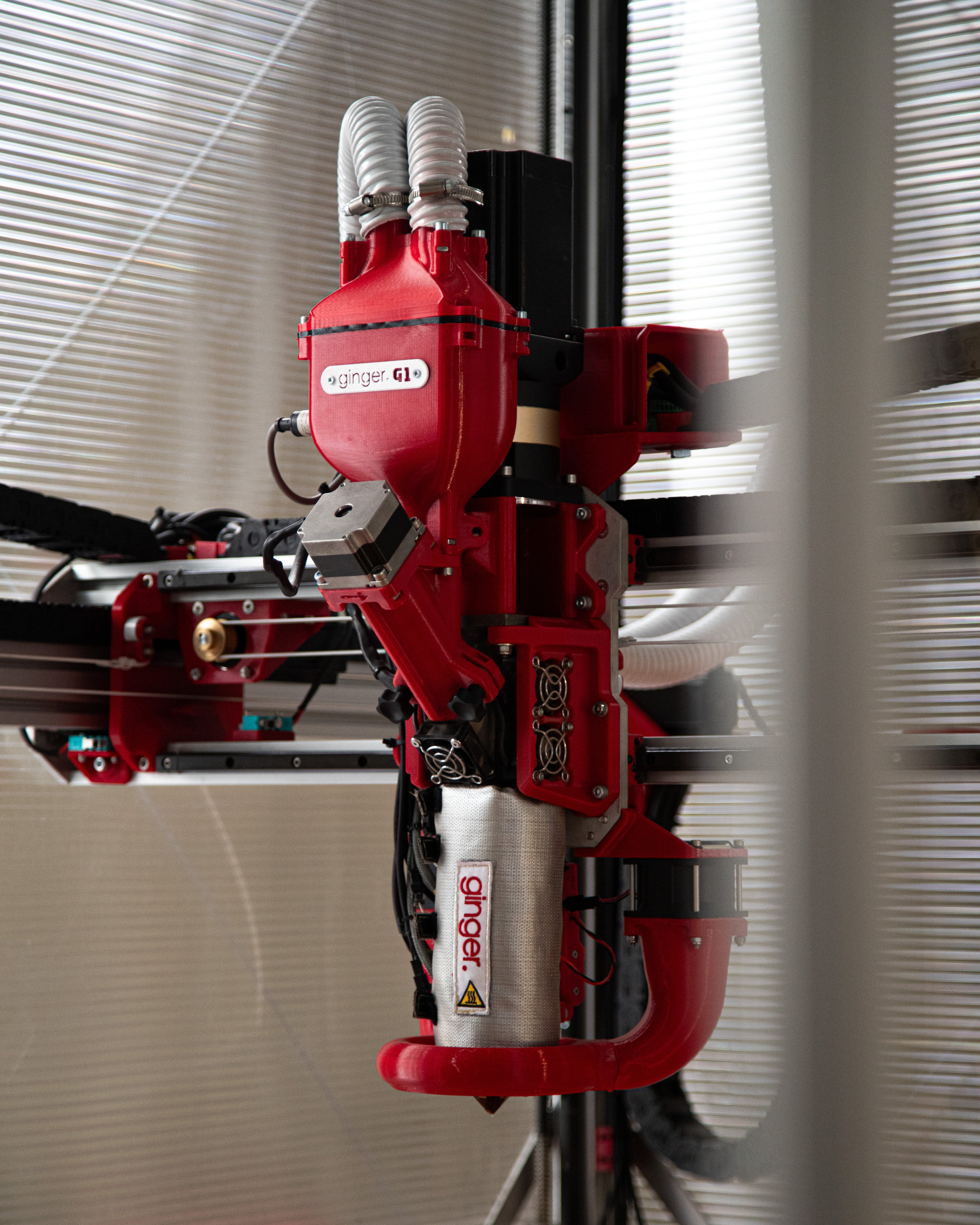

High-output pellet extruder
The core of the G1, engineered for fibre-filled and technical materials. Included with the printer, and available separately for OEM integration.
- Output
- 2–3 kg/h

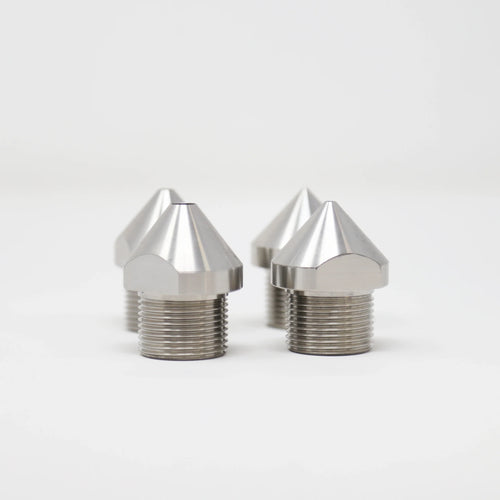

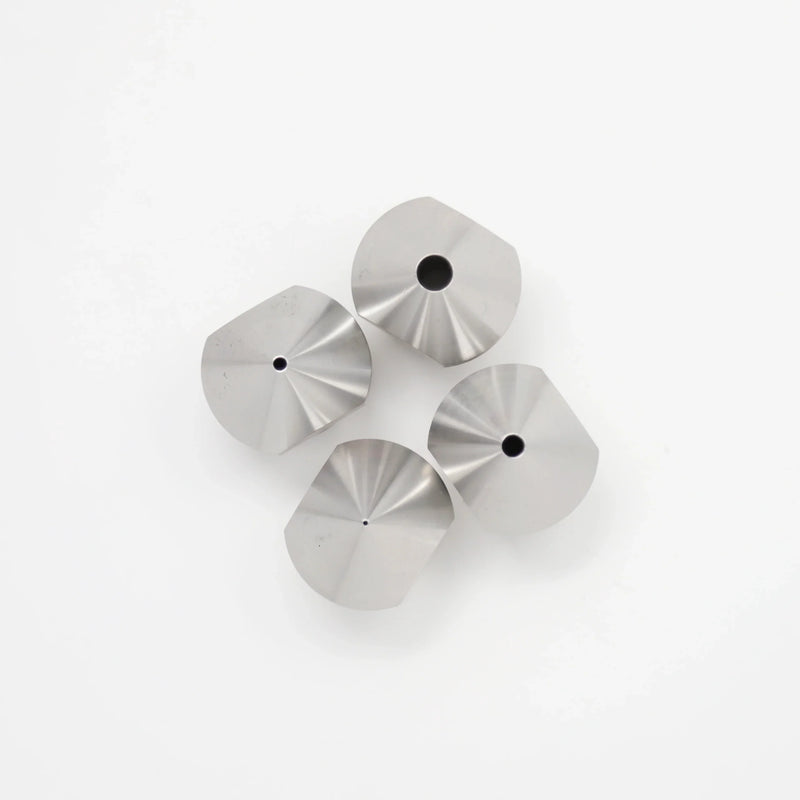

- Nozzles
- 1.8 / 3 / 5 / 8 mm
- Max temperature
- 280 °C
- Materials
- CF and GF compounds
Technical specifications
Download datasheet (PDF)Machine
- Build volume
- 1000 × 1000 × 1000 mm
- Footprint
- 1600 × 1600 × 1800 mm
- Weight
- 200 kg
- Heated bed
- up to 110 °C
- Chamber
- enclosed, up to 50 °C
- Feeding
- Auto-feeding and drying
Extrusion & control
- Extrusion rate
- 2–3 kg/h
- Nozzles
- 1.8 / 3 / 5 / 8 mm
- Max temperature
- 280 °C
- Materials
- PLA, PETG, ABS, ASA, CF-PETG, GF-PA, PC
- Control
- Klipper-based
- Slicer
- Ginger Slicer
- Power
- 220 VAC (split-phase in North America) · 2 × 2 kW peak
Built for real parts
Applications
Prototyping & modelmaking
Full-scale volumes without outsourcing. Fast iteration cycles.
Tooling & fixtures
Large jigs, moulds and production aids at a fraction of CNC cost.

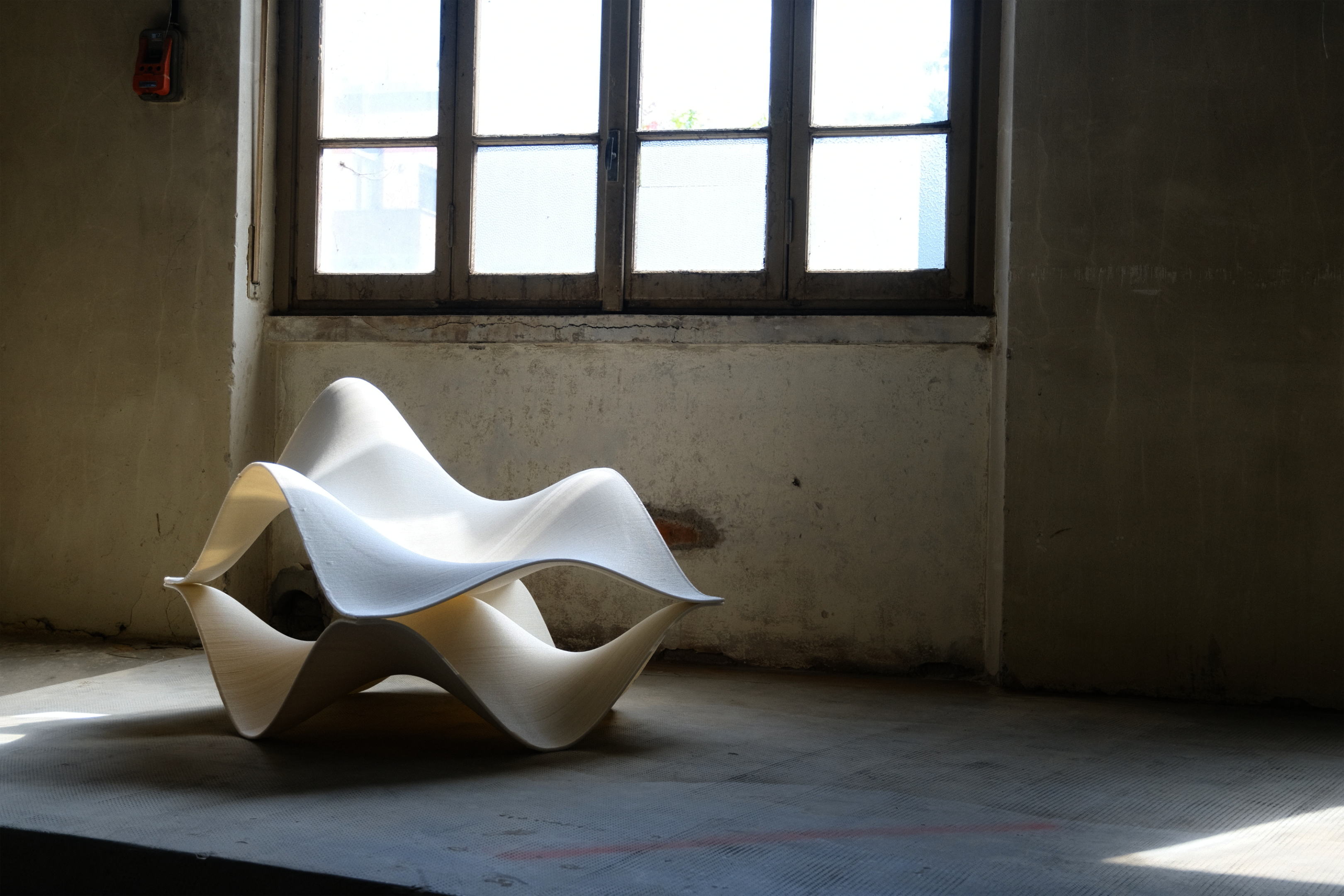

Furniture & interior
Robust parts for chairs, tables, lighting and architectural elements.
Architecture
Joints, panels and pavilions printed at full scale.
Test print
See the result before you invest.
We print your model on the G1, in your chosen material. You evaluate surface quality, layer adhesion, dimensional stability and cost per part. No commitments.
Meet us this November.
Formnext, Frankfurt · 17–20 Nov.
Questions, answered
Can it handle fibre-reinforced materials?
Yes. Nozzle, screw and barrel are in hardened steel, built for carbon- and glass-fibre compounds.
Do pellets require pre-drying?
Yes, for most materials. Many polymers absorb moisture from the air, which affects extrusion, surface quality and strength. The complete G1 system includes a pellet dryer with automatic feeding.
How long is the setup time?
You can assemble the G1 yourself with our documentation, videos and remote support. An optional 2-day on-site Installation Workshop is available.
How precise is pellet printing?
Tolerances from 0.2 mm are achievable, depending on nozzle and geometry. For critical parts we recommend a test print.
What is the warranty?
One year standard warranty for EU B2B customers. Consumable and wear parts follow separate conditions.
See the G1 in person.
The G1 is installed across the globe, often closer than you think. Visit an installation or request a remote demo.
